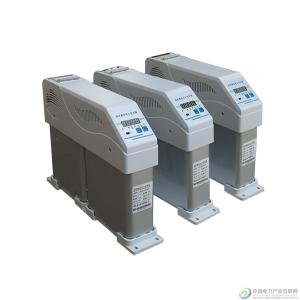

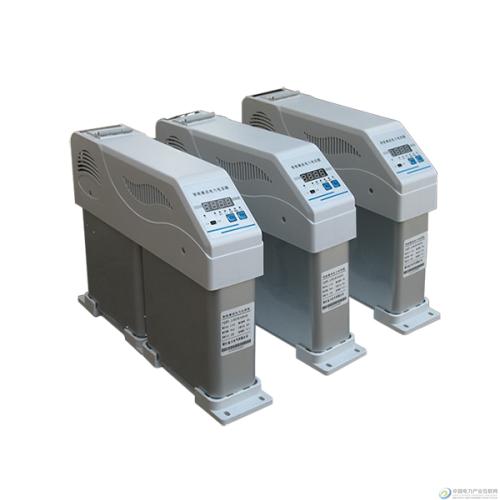

标准电容

型号说明 model meanings

本产品符合下列标准的相应要求
The products meet the following standard needs：
JB/T 7113 　　GB/T1 7626.2
GB/T 15576 　GB/T1 7626.5
DL/T 597 　　 GB/T1 7626.4

使用条件 servicecondition
海拔：≤ 2000 米
环境温度：-25℃ ~+45℃
相对湿度：+40℃，20% ~90%
污染等级：3 级
安全级别：III
elevation: ≤ 2000m
envoi rment temperatu re:-25℃ ~+45℃
relative humidity:+40℃ ,20%~90%
class of pollution:3 Class
secu rity IeveI:III

卓越性能 Outstanding property
过零投切：采用智能晶闸管复合开关电路，实现等电压投入，零电流切除，投切无涌流冲击、无设备过电压，无电弧重燃，大大提高了设备的耐电压，电流冲击、功耗小，减少了常规电容柜内80%的能耗。
分相补偿：实现单相分别补偿，解决三相负荷不平衡状况，对无功缺额较大的一相进行单独补偿，达到最优化的补偿效果。
节能降耗：体积缩小50%左右，可节省土地、铜材、银材、工程塑料等资源50%左右，导线电损、接点电损、器件等电损降低50%左右。
温度保护：配有温度传感器，能够反映电容过电流、过谐波、漏电流过大和环境温度过高有情情况下导致电容器内部发热，实现过温度保护，超过设定温度以后自动切除电容器，退出运行，达到保护设备的目的。
智能网络：多台智能集成电力电容器联网使用时，自动生成一个网络，其中地址码最小的一个为主机；如果主机故障推出，在其余从机中产生一个新的主机组成新的系统；容量相同的电容器按循环投切原则，容量不同的电容器按适补原则投切；485 通讯接口可以接入后台计算机，进行配电综合管理。
高可靠性：取消控制器，采用分散控制模式，杜绝因控制器故障导致整个系统瘫痪，智能晶闸管复合投切开关确保投切过程中无涌流冲击、无操作过电压、无电弧重燃，故障率极低，彻底解决了传统模式中接触器、电容器经常损坏的难题。
积木结构：产品标准化、模块化，取代了传统的控制器、空气开关、交流接触器、可控硅、热继电器、电容器等器件，将其合为一整体，组柜安装时候采用积木堆积方式。
接线简单：多台电容器组柜安装，生产工时比传统模式节约60%以上，同时减少80%连接线及节点，柜内简洁，实现可在使用现场快速组装。
扩容方便：产品体积小，接线简单，随着用户电力负荷的增加而增加电容器的数量，适应企业发展的需要，可以分期投资。
维护方便：数码管显示保护动作类型，包括有过压、欠压、过流、三相不平衡等；智能集成电力电容器并具备自诊断功能，可以在显示屏上反映电子开关、电容器、空气开关、智能模块网络通讯等故障，有利于现场故障查找。
效果显著：保障系统电压稳定合格，提高功率因数，对投入电容器进行预测并合理投运，避免无功31、偿不足或过补而罚款，达到提高配电有功出力，减少增容投资，降损节能。
Zero-cross switching:apply intelligent thyristor combination switching circuit,significantly increased the withstand voltage of the equipment by achieving constant voltageinput,zero current clearing,no inrush current or equipment over-voltagein switching and no arc reignition,and reduced 80% of the power consumption of common capacitor box with small current and power consumption.
Phase-splitting compensation:achieve respective singlephase compensation,solve the unbalance condition of threephase load, compensate separately to the phase with higher reactive shortfall to achieve optimized compensation effect. Power savlng&consumption reducing:reduce size by about 50%,could reduce the resou rce such as land,copper,silver and proiect plastic by 50% electrical loss of conducting wire,contact and components,etc.by 50% .
Temperature protection:equipped with temperature sensor that can reflect the inner heat of capacitor caused by the overcurrent of capacitor, harmonic overload,excessive drain current and exorbitant ambient temperature,and achievetem perature protection by automatically cut off the capacitor and stop running when excess the set temperature to protect the device.
Intelligent network:when multipie intelligent integrated power capacitors are connected, there will automatically generate a network with the capacitor with the smallest address code as the base machine;if the base machine fails and stops working,one of the other capacitors will become the new base machine to form a new system;for capacitors with the same capacity,apply circulating switching principie,for capacitors with different capacitor, apply the principle of suitable one to supplement;it can be connected to backing computer through the cornmunication interface 485 to realize integrated management of power distribution.
High reliability:remove controller,applythe decentralized control model,completely avoidthe b reakdown of system resulted from the malfunction of controller.The intelligent thyristor combination switch ensures no inrush current,equipment over-voltage in switching or arc reignition,lowers the failure rate and comp-letely solves the ProbIem of frequent breakdown of contact and capacifor for the traditional model.
Modular structure:standardized and modularized
products replace the traditional cornponents such as controller,air switch,AC contactor,controllable silicon, heat relay and capacitor with an entirety,which allows to stack the modules in the shelf assembling and installation.
Simple connection:instalI multipie capacitors in the shelves, reduce producing time by mo re than 60% than the traditional model and reduce the use of con-necting wires and contacts by 80%.The neatness inside the shelf can facilitate the ability of fast onsite assembling.
Convenlent capacity expansion:the small size and simpie connection of product allow increasing the quantity of capacitors as the electric power load of the client grows through phased investment to adapt to the demand of company development.
Convenient maintenance:the digital tube shows the types of protective actions,including over-voltage, undervoltage, over-current,three-phase imbalance,etc.; the intelligent integrated power capacitor has the function of auto diagnosis that can reflect the malfunction of electronic switch,capacitor, air switch and network communicat ion of intel l igent module,favoring onsite troubleshooting.
Significant effect:ensure stable and eligible
system voltage,increase power factor,estimate and reasonably commission of capacitor,avoid reactive compensation insufficiency or penalty resulted from excessive cornpensation,so as to increase active power output in distribution,reduce the investment of capa-city expansion and power consumption.

九大科技创新 Nine technological innovations
1. 智能集成电力电容器智能控制技术，实现人机对话
Intelligent control technology of intelligent integrated power capacitor tealizes man-machine conversation
2. 采用美国超强抗干扰芯片及双看门狗技术
Apply American strong anti-jamming chip and dual watchdog technology
3. 分相补偿几混合补偿技术
Phase-splitting compensation and mixed compensation technology
4. 无触点光电触发技术及先进复合开关技术
Contactless photovoltaic trigger technology and advanced composite switching technology
5. 在线测控采样技术
Online measu rement,control and sampling technology
6. 等电压投切技术，实现真正过零
Constant voltage switching technology,achieve real zero-crossing
7. 全自动保护设计
Automatic protection design
8. 低功耗设计
Low power consumption design
9. 集成设计，设备高度小型化
Integration design, highly miniaturized equipment

主要技术数据 main technical characterisetics
